[Coincident Topology] backside lines blink when "PolygonOffset" is set

Development
,
1

Hi,

I have a polydata with polys and lines. Some part of lines is behind the polys and they are covered by polys. I found and activated the “PolygonOffset” coincident topology. The “covered” issue is unsolved and I encounted a new problem:

After

vtkMapper::SetResolveCoincidentTopologyToPolygonOffset();

is applied,

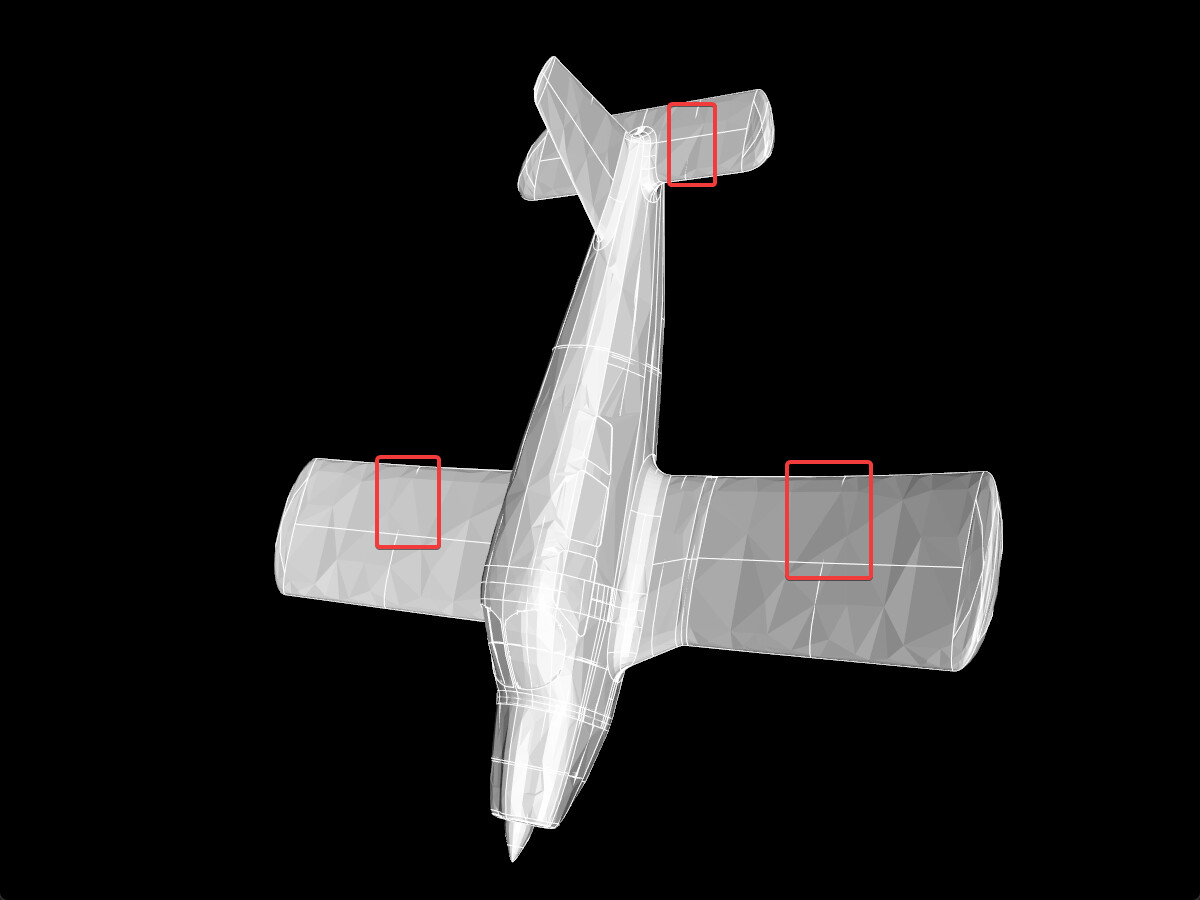

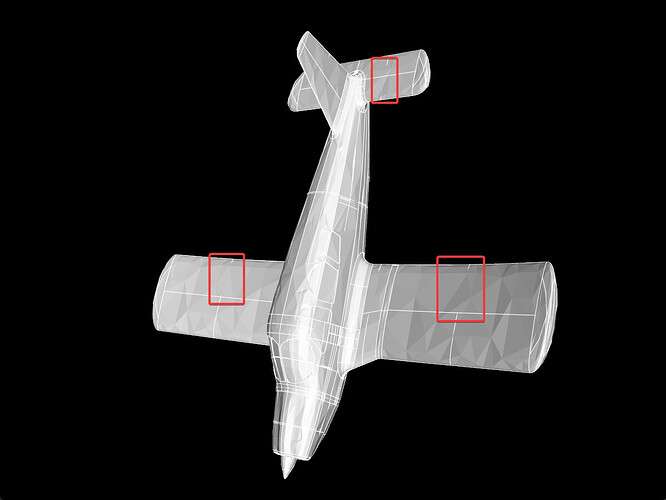

  1. the “cover“ problem remains, before I zoom in:

image1200×900 69.3 KB

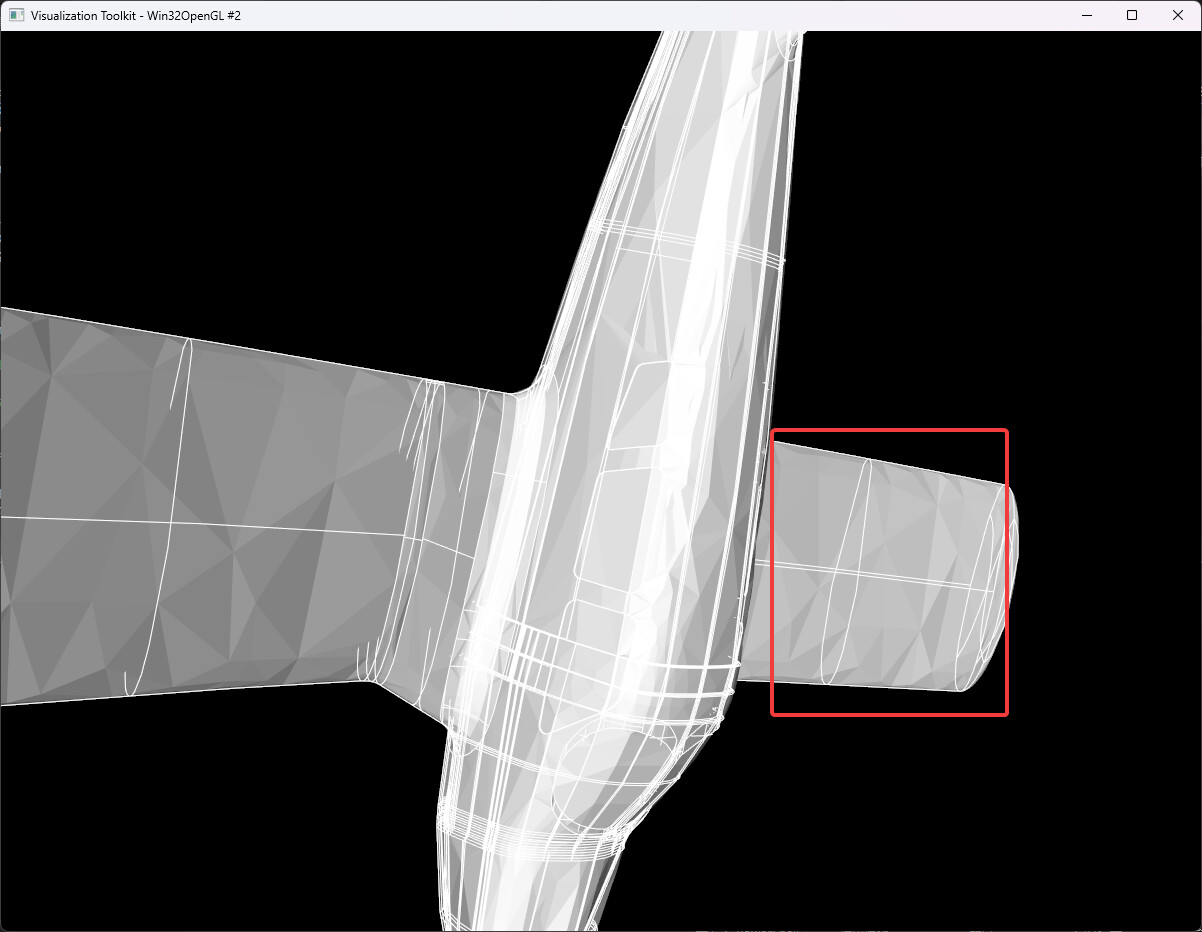

  1. when I zoom in and rotate a little bit, the “cover“ issue is solved but the backside lines also appears.

image1202×932 111 KB

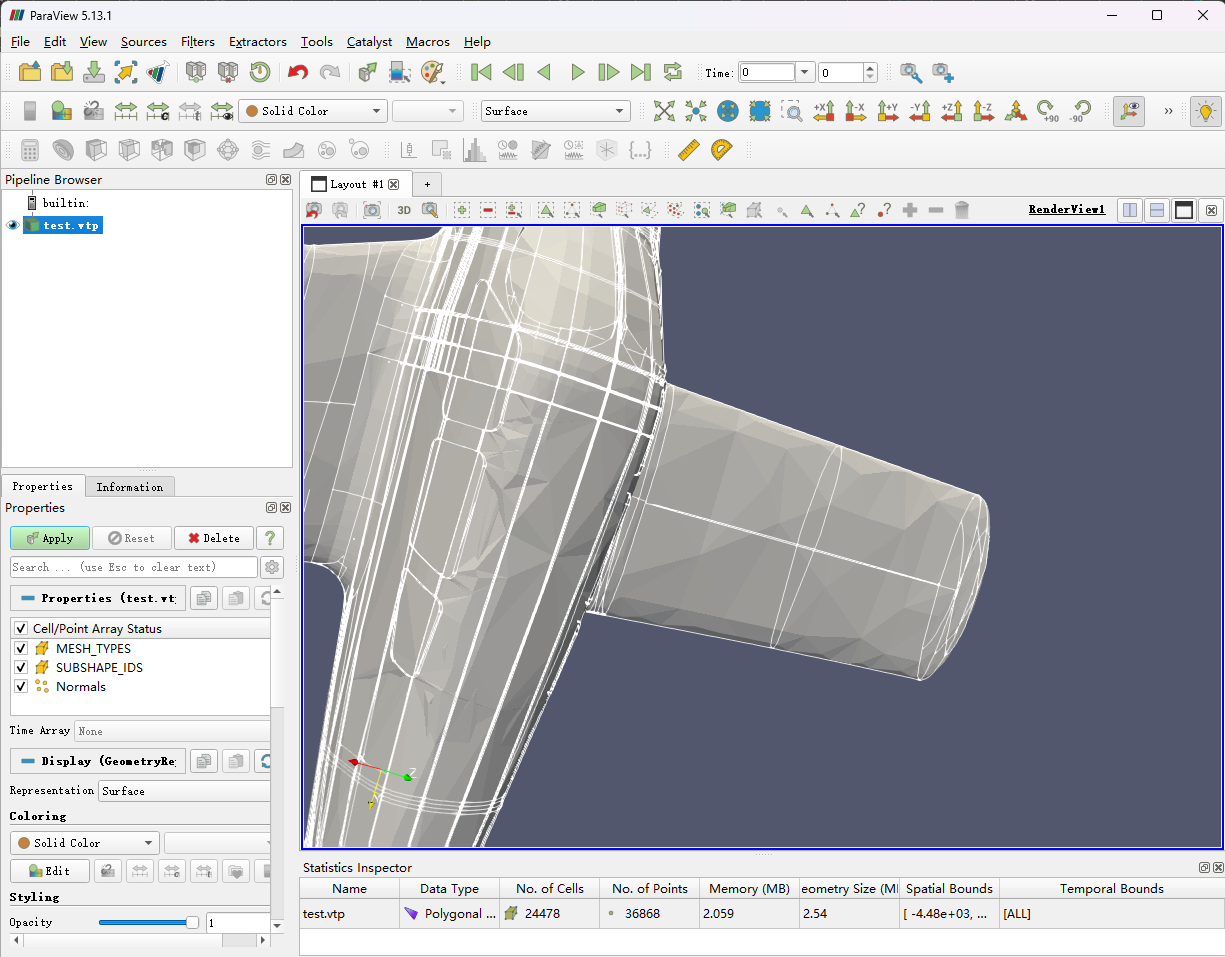

BTW, when I import this model to paraview 5.13.1, the problem is also reproduced.

image1225×957 193 KB

I wonder,

  • is it a proper/normal behavior for VTK?
  • if I set something wrong, could you please correct me?

test.vtp (3.4 MB)

Best Regards,

aciue
