Regarding Glyph3DMapper

Hello everyone, I attempted to use cubes instead of pixels to render the ply file, but the actual rendering result did not meet my expectations. Could it be that I used a wrong part? Here is my code:

<template>
  <div class="point-cloud-cube" ref="container"></div>
</template>

<script>
import '@kitware/vtk.js/Rendering/Profiles/Geometry';
import vtkFullScreenRenderWindow from '@kitware/vtk.js/Rendering/Misc/FullScreenRenderWindow';
import vtkPLYReader from '@kitware/vtk.js/IO/Geometry/PLYReader';
import vtkCubeSource from '@kitware/vtk.js/Filters/Sources/CubeSource';
import vtkGlyph3DMapper from '@kitware/vtk.js/Rendering/Core/Glyph3DMapper';
import vtkActor from '@kitware/vtk.js/Rendering/Core/Actor';
import { onMounted, onUnmounted, ref } from 'vue';

export default {
  name: 'CubeRender',
  setup() {
    const container = ref(null);
    let fullScreenRenderer = null;

    onMounted(async () => {
      fullScreenRenderer = vtkFullScreenRenderWindow.newInstance({
        container: container.value,
        background: [0.1, 0.1, 0.1],
      });
      const renderer = fullScreenRenderer.getRenderer();
      const renderWindow = fullScreenRenderer.getRenderWindow();

      const reader = vtkPLYReader.newInstance();
      await reader.setUrl('/random_points.ply');

      const cubeSource = vtkCubeSource.newInstance({
        xLength: 10,
        yLength: 10,
        zLength: 10,
      });

      const glyphMapper = vtkGlyph3DMapper.newInstance();
      glyphMapper.setInputConnection(reader.getOutputPort(), 0);
      glyphMapper.setInputConnection(cubeSource.getOutputPort(), 1);

      const actor = vtkActor.newInstance();
      actor.setMapper(glyphMapper);
      renderer.addActor(actor);
      renderer.resetCamera();
      renderWindow.render();
    });

    onUnmounted(() => {
      if (fullScreenRenderer) {
        fullScreenRenderer.delete();
      }
    });

    return { container };
  },
};
</script>

<style>
.point-cloud-cube {
  width: 100%;
  height: 100vh;
}
</style>

What rendering result do you have ?

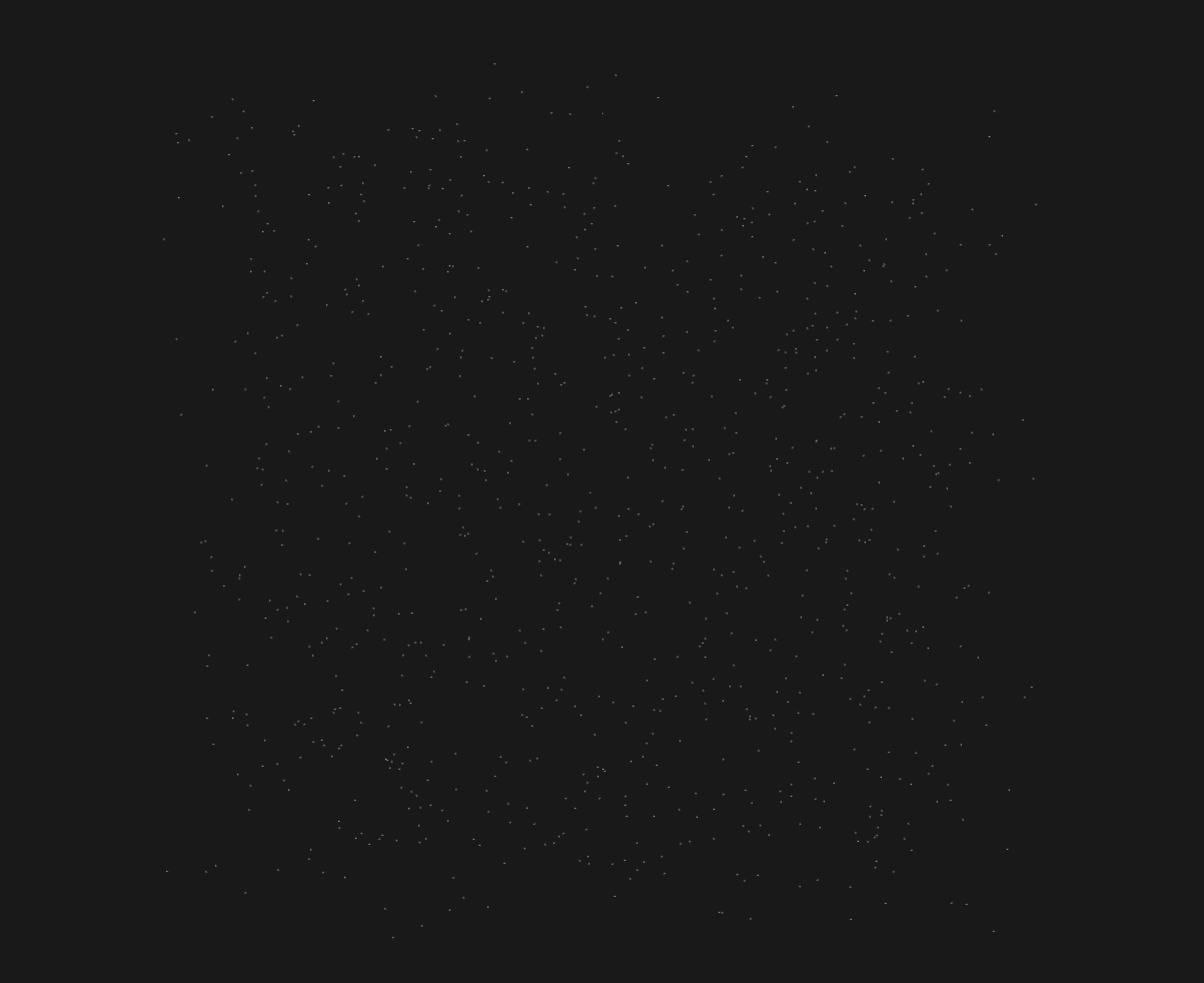

Thank you very much for your reply. This is the result I obtained. When it is enlarged, it still appears as dots rather than a cube.

You need to import the Glyph rendering profile in addition to the Geometry profile:

import '@kitware/vtk.js/Rendering/Profiles/Glyph';

Not sure why it rendered something at all…

Thank you very much for your patient reply. I actually made such a stupid mistake. :rofl:
