Hello all,
I am working with a .vtk file of the brain which consists of principal eigenvectors.

image.jpg1262×847 702 KB
image.jpg1920×1044 2.24 MB

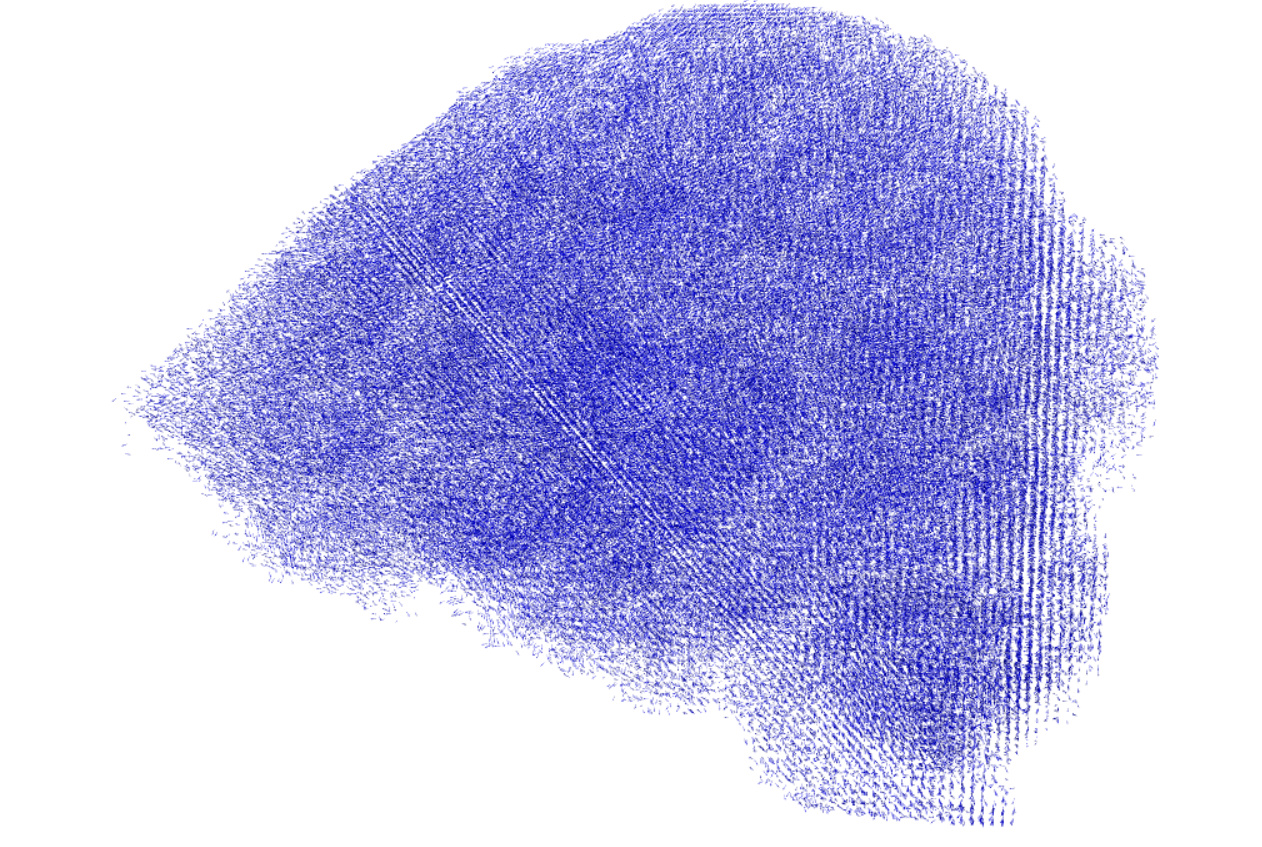

Please see the thresholded brain image and zoomed up version(glyphs) in the images.

Now I want to pick a seed point in the brain by mouse click and gradually grow the tract following the vector points until 1000 iterations with the equation, p1 = p0 + v(p0)*s where s is the stepsize less than one voxel.
for i th iteration points, p(i) = p(i-1) + v(p(i-1)) *s
So far I am using the following codes which pick the seed point but end up in segmentation fault. I did not implement the tract growing part… for that I require help.


Code:

#include <vtkSmartPointer.h>
#include <vtkXMLPolyDataReader.h>
#include <vtkNrrdReader.h>
#include <vtkPolyData.h>
#include <vtkRenderer.h>
#include <vtkRenderWindow.h>
#include <vtkPolyDataMapper.h>
#include <vtkActor.h>
#include <vtkStructuredPointsReader.h>
#include <vtkArrowSource.h>
#include <vtkGlyph3D.h>
#include <vtkRenderWindowInteractor.h>
#include <vtkPolyDataReader.h>
#include <vtkProperty.h>
#include <vtkImageDataGeometryFilter.h>
#include <vtkPolyDataNormals.h>
#include <vtkQuadricDecimation.h>
#include <vtkStructuredPoints.h>
#include <vtkPointData.h>
#include <vtkFloatArray.h>
#include <vtkImageData.h>
#include <vtkThresholdPoints.h>
#include <vtkDataSet.h>
//for picking points
#include <vtkPointPicker.h>
#include <vtkInteractorStyleTrackballCamera.h>
#include <vtkRendererCollection.h>

class MyMouseCallback : public vtkInteractorStyleTrackballCamera
{
public:
	MyMouseCallback()
	{
	}
	~MyMouseCallback()
	{
	}
	static MyMouseCallback* New()
	{
		MyMouseCallback* callback = new MyMouseCallback();
		return callback;
	}
	virtual void OnLeftButtonDown() override
	{
		std::cout << "hello" << std::endl;
		int x, y;
		this->Interactor->GetEventPosition(x, y);
		std::cout << "Picked pixel: " << x << " " << y << std::endl;

		// figure out where that maps to in the scene (which point of which mesh?)
		// we need to know the picker and renderer
		vtkSmartPointer < vtkPointPicker > picker = dynamic_cast <vtkPointPicker *> (this->Interactor->GetPicker());
		vtkSmartPointer < vtkRenderWindow > window = this->Interactor->GetRenderWindow();
		vtkSmartPointer < vtkRenderer > renderer = window->GetRenderers()->GetFirstRenderer();
		picker->Pick(x, y, 0, renderer);

		std::cout << "Picked point id: " << picker->GetPointId() << std::endl ;
		//std::cout << "Picked point id: " << picker->GetCellId() << std::endl;

		// we need to figure out where the mesh is
		vtkSmartPointer < vtkPolyDataMapper > mapper = dynamic_cast <vtkPolyDataMapper*> (picker->GetMapper());
		if (mapper != NULL)
		{
			vtkSmartPointer < vtkPolyData > mesh = mapper->GetInput();

			// get the scalars from the mesh so we can change it
			vtkSmartPointer < vtkIntArray >	scalars = dynamic_cast <vtkIntArray*> (mesh->GetPointData()->GetScalars());

			// change the scalars
			scalars->SetValue ( picker->GetPointId(), 1 ) ;
			mesh->Modified();
		}
		// now go back to doing nromal left button things
		vtkInteractorStyleTrackballCamera::OnLeftButtonDown();
	}
};


int main(int argc, char* argv[])
{
	vtkSmartPointer<vtkStructuredPointsReader> reader = vtkSmartPointer<vtkStructuredPointsReader>::New();
	//vtkSmartPointer<vtkXMLPolyDataReader> reader2 = vtkSmartPointer<vtkXMLPolyDataReader>::New();
	//reader->SetFileName("../../PEoutput.vtk");
	reader->SetFileName(argv[1]);
	reader->Update();
	//std::cout << reader->GetOutput()->GetNumberOfPoints() << std::endl; //1762560

	//clean up codes:

	vtkSmartPointer<vtkFloatArray> brain = vtkSmartPointer<vtkFloatArray>::New();
	brain->SetNumberOfValues(reader->GetOutput()->GetNumberOfPoints());

	for (vtkIdType idx = 0; idx < reader->GetOutput()->GetNumberOfPoints(); idx++)
	{
		double* v = reader->GetOutput()->GetAttributes(vtkDataSet::POINT)->GetVectors()->GetTuple3(idx);
		if (v[0] * v[1] * v[2] > 0)
		{
			brain->SetValue(idx, 1);
		}
		else
		{
			brain->SetValue(idx, 0);
		}
	}

	reader->GetOutput()->GetPointData()->SetScalars(brain);

	vtkSmartPointer<vtkThresholdPoints> thresh = vtkSmartPointer<vtkThresholdPoints>::New();
	thresh->ThresholdByUpper(0.5);
	thresh->SetInputData(reader->GetOutput());
	thresh->Update(); //this is also the reader image

	//vtkSmartPointer<vtkPolyData> thresholdImage = thresh->GetOutput();

	/*
	vtkSmartPointer<vtkImageDataGeometryFilter> geometryFilter = vtkSmartPointer<vtkImageDataGeometryFilter>::New();
	geometryFilter->SetInputConnection(reader->GetOutputPort());
	geometryFilter->Update();
	*/

	//vtkSmartPointer<vtkPolyDataMapper> mapper = vtkSmartPointer<vtkPolyDataMapper>::New();
	//mapper->SetInputData(thresh->GetOutput());
	//mapper->SetInputConnection(geometryFilter->GetOutputPort()); //geometryFilter

	//vtkSmartPointer<vtkActor> actor = vtkSmartPointer<vtkActor>::New();
	//actor->SetMapper(mapper);
	//actor->GetProperty()->SetColor(1, 0, 0);

	// Compute & Visualize Normal Vectors
	/*
	vtkSmartPointer<vtkPolyDataNormals> normalsFilter = vtkSmartPointer<vtkPolyDataNormals>::New();
	normalsFilter->SetInputData(geometryFilter->GetOutput());
	normalsFilter->ComputePointNormalsOn();
	normalsFilter->Update();
	*/
	vtkSmartPointer<vtkArrowSource>oneArrow = vtkSmartPointer<vtkArrowSource>::New();
	oneArrow->Update();

	vtkSmartPointer<vtkGlyph3D> lotsOfArrows = vtkSmartPointer<vtkGlyph3D>::New();
	lotsOfArrows->SetSourceData(oneArrow->GetOutput());
	lotsOfArrows->SetInputData(thresh->GetOutput()); //gerometryFilter
	lotsOfArrows->OrientOn();
	lotsOfArrows->SetScaleFactor(1);
	lotsOfArrows->SetColorModeToColorByVector();
	lotsOfArrows->Update();

	vtkSmartPointer < vtkPolyDataMapper > arrowMapper = vtkSmartPointer < vtkPolyDataMapper > ::New();
	arrowMapper->SetInputData(lotsOfArrows->GetOutput());

	vtkSmartPointer<vtkActor> arrowActor = vtkSmartPointer<vtkActor>::New();
	arrowActor->SetMapper(arrowMapper);
	arrowActor->GetProperty()->SetColor(1, 0, 0); //

	vtkSmartPointer<vtkRenderer> renderer = vtkSmartPointer<vtkRenderer>::New();
	vtkSmartPointer<vtkRenderWindow> renderWindow = vtkSmartPointer<vtkRenderWindow>::New();
	renderWindow->AddRenderer(renderer);
	renderer->AddActor(arrowActor); //arrowActor //actor

	renderer->SetBackground(1, 1, 1);
	renderWindow->Render();
	renderWindow->SetSize(300, 300);

	vtkSmartPointer<vtkRenderWindowInteractor> interactor = vtkSmartPointer<vtkRenderWindowInteractor>::New();
	interactor->SetRenderWindow(renderWindow);

	// create a point picker
	vtkSmartPointer < vtkPointPicker > pointPicker = vtkSmartPointer < vtkPointPicker >::New();
	interactor->SetPicker(pointPicker);

	// create an interactor style
	vtkSmartPointer < MyMouseCallback > interactorStyle = vtkSmartPointer < MyMouseCallback >::New();
	interactor->SetInteractorStyle(interactorStyle);

	interactor->Start();

	return 0;
}
