Rendering artifacts with edge visibility and transparency

Support
1

Dear VTK users/developers,

I have the super simple script below (in Python). Even running with VTK 9.5.2 (from PyPI) on Windows 11 64 bit and Python 3.9, I get rendering artifacts:

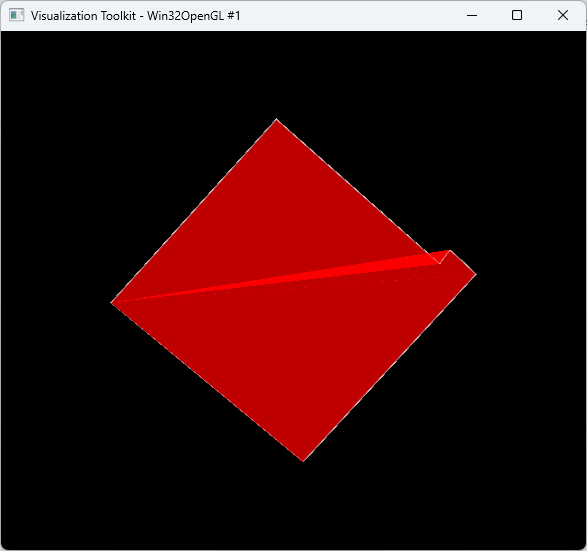

vtk_transparency
vtk_transparency587×551 11.6 KB

The picture is just a simple polyhedron, and I set its opacity to 0.5 and I set to use edge visibility.

Maybe what I am trying to do cannot be done, or (highly likely) I am doing something wrong with the code. Any suggestion would be most appreciated, thank you.

Code:

import vtk

# Original points
points_data = [(0.0, 0.0, 0.0),
               (7868.484899999923, 8717.047000000253, 0.0),
               (15621.25689999992, 1851.4080000002868, 0.0),
               (16122.679899999988, 2507.1150000002235, 0.0),
               (17356.952099999995, 1349.9850000003353, 0.0),
               (9136.155671230983, -7562.280203491449, 0.0),
               (0.0, 0.0, 0.0)]

# Extrusion height
height = 300

# Create VTK points
points = vtk.vtkPoints()
num_points = len(points_data)

# Insert top points (z = 0)
for x, y, _ in points_data:
    points.InsertNextPoint(x, y, 0)

# Insert bottom points (z = -height)
for x, y, _ in points_data:
    points.InsertNextPoint(x, y, -height)

# Create top face polygon
top_face = vtk.vtkPolygon()
top_face.GetPointIds().SetNumberOfIds(num_points)
for i in range(num_points):
    top_face.GetPointIds().SetId(i, i)

# Create bottom face polygon
bottom_face = vtk.vtkPolygon()
bottom_face.GetPointIds().SetNumberOfIds(num_points)
for i in range(num_points):
    bottom_face.GetPointIds().SetId(i, i + num_points)

polys = vtk.vtkCellArray()

# Create side faces (quads)
side_faces = vtk.vtkCellArray()
polys.InsertNextCell(top_face)

for i in range(num_points-1):
    quad = vtk.vtkQuad()
    quad.GetPointIds().SetId(0, i)
    quad.GetPointIds().SetId(1, i + 1)
    quad.GetPointIds().SetId(2, i + 1 + num_points)
    quad.GetPointIds().SetId(3, i + num_points)
    polys.InsertNextCell(quad)

polys.InsertNextCell(bottom_face)

# Create polydata
polydata = vtk.vtkPolyData()
polydata.SetPoints(points)
polydata.SetPolys(polys)

# Mapper and actor
mapper = vtk.vtkPolyDataMapper()
mapper.SetInputData(polydata)

actor = vtk.vtkActor()
actor.SetMapper(mapper)

# Set properties
prop = actor.GetProperty()
prop.SetColor(1, 0, 0)           # Red surface
prop.SetEdgeVisibility(1)        # Show edges
prop.SetEdgeColor(1, 1, 1)       # White edges
prop.SetLineWidth(1)
prop.SetOpacity(0.5)

# Renderer
renderer = vtk.vtkRenderer()
renderer.AddActor(actor)
render_window = vtk.vtkRenderWindow()
render_window.AddRenderer(renderer)

interactor = vtk.vtkRenderWindowInteractor()
interactor.SetRenderWindow(render_window)

render_window.Render()
interactor.Start()
2

Hello,

I think you’re better off if you simply make your “floor” polygon then extrude it along its normal by using vtkLinearExtrusionFilter (example: https://examples.vtk.org/site/Python/GeometricObjects/EllipticalCylinder/) and make the “ceiling” polygon by calling CappingOn() on it.

best,

PC

3

Hello,

thank you for your answer. Actually, a vtkLinearExtrusionFilter is the first thing I tried. Problem is, depending on the polygon you have (convex or not, more complex or less complex), turning on transparency plus edge visibility makes a mess. Either I end up with the image I posted, or I can see edge lines where there should be none (I.e., diagonal lines across faces). I seem unable to find a proper solution that involves one actor only. I can do it with two actors, but then again I wouldn’t be asking this question in the first place if I could just go with two actors…

4

A quick peek suggests that there are a few problems here. First, polygons should not repeat the first point, it is assumed. The script repeats the first and last point.

Second, a modulo operation must be provided when you wrap around the bottom and top polygon (to build the skirt). So the indices are messed up.

Finally, the polygons (top and bottom) you have created are concave. Rendering systems assume polygons are convex, and when (internally) triangulating them with something like a fan tessellation, do bad things.

I’ve attached an ugly script that addresses these issues with the addition of a vtkTriangleFilter to fix the concave polygons. If you want to only render edges along the sharp edges, you could add in a vtkFeatureEdges, and either append the mess together if you want a single actor, or render the surface and feature edges with separate actors.

(attachments)

extrude.py (2.37 KB)
