What is the easiest way to clip a vtkOutlineFilter?

Support
1

I would like to show only the corners of the outline shown with a vtkOutlineFilter:

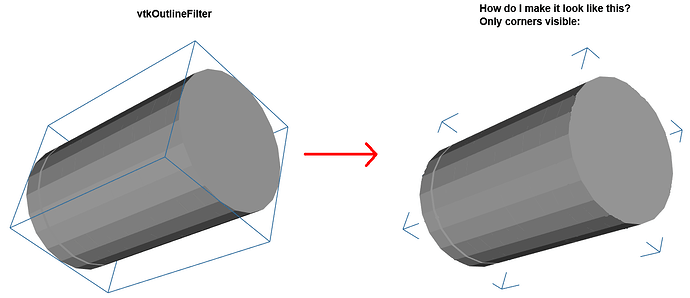

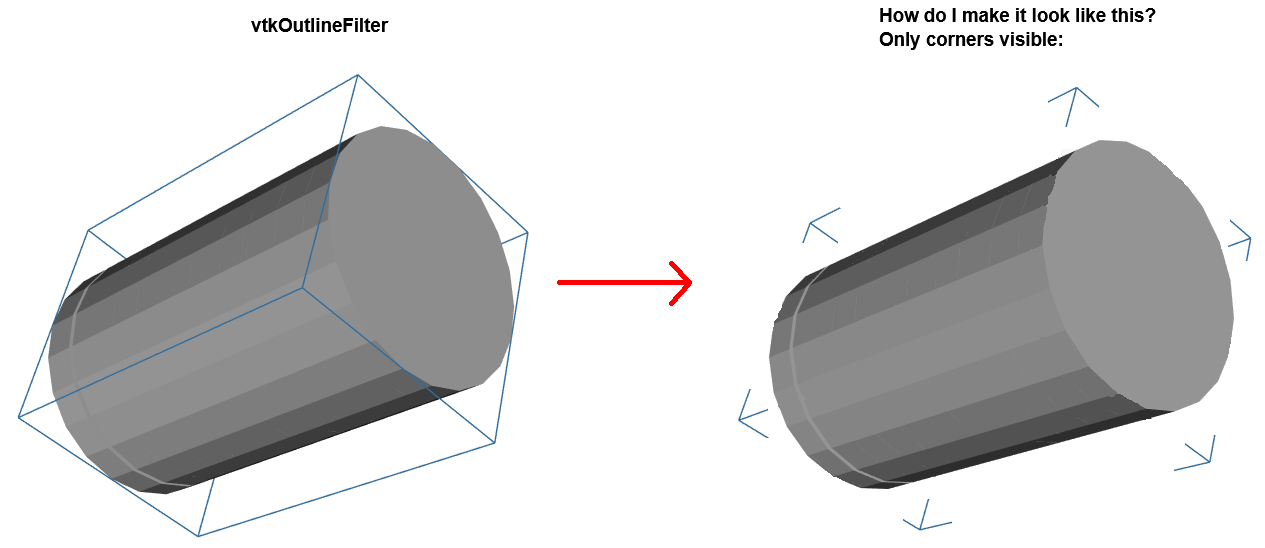

image1265×548 32.6 KB

My thought was that I could first create the vtkOutlineFilter algorithm, and then “subtract” the parts that I don’t want using some kind of subtraction filter. Is this doable?

In my testing I applied a vtkBox implicit function to vtkClipPolyData, and then tried to use it to clip the vtkOutlineFilter, but it did not clip anything.

2

The vtkOutlineCornerFilter does exactly what you want. You can use that in place of the vtkOutlineFilter.
